Flutter示例代码：波浪形圆形进度条

terry 2年前 (2023-09-23) 阅读数 67 #移动小程序

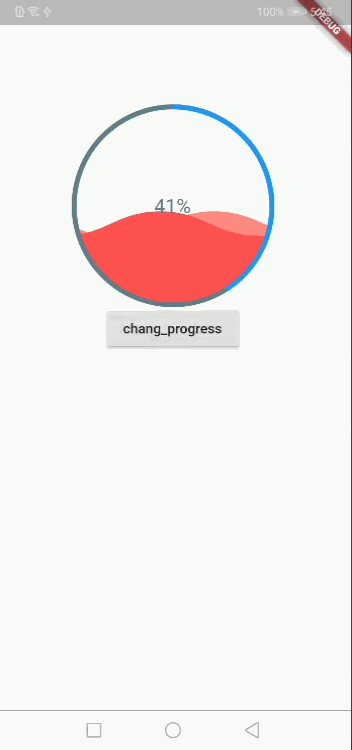

渲染

实现步骤

绘制进度条

先绘制波浪

 void drawWave(Canvas canvas, Offset center, double radius,
     double waveOffsetPercent, Paint paint) {
   double waveOffset = -(waveOffsetPercent * radius * 2);
   //对画布进行圆形裁剪
   canvas.save();
   Path clipPath = Path()
     ..addOval(Rect.fromCircle(center: center, radius: radius));
   canvas.clipPath(clipPath);

   //表示出上图所示的point(上图中p)以及controlPoint（上图中c）
   double waveProgressHeightY = (1 - percent) * radius * 2;
   Offset point1 = Offset(waveOffset, waveProgressHeightY);
   Offset point2 = Offset(waveOffset + radius, waveProgressHeightY);
   Offset point3 = Offset(waveOffset + radius * 2, waveProgressHeightY);
   Offset point4 = Offset(waveOffset + radius * 3, waveProgressHeightY);
   Offset point5 = Offset(waveOffset + radius * 4, waveProgressHeightY);
   Offset point6 = Offset(point5.dx, radius * 2 + halfWaveHeight);
   Offset point7 = Offset(point1.dx, radius * 2 + halfWaveHeight);
   Offset controlPoint1 =
       Offset(waveOffset + radius * 0.5, waveProgressHeightY - halfWaveHeight);
   Offset controlPoint2 =
       Offset(waveOffset + radius * 1.5, waveProgressHeightY + halfWaveHeight);
   Offset controlPoint3 =
       Offset(waveOffset + radius * 2.5, waveProgressHeightY - halfWaveHeight);
   Offset controlPoint4 =
       Offset(waveOffset + radius * 3.5, waveProgressHeightY + halfWaveHeight);
   //完成path的链接
   Path wavePath = Path()
     ..moveTo(point1.dx, point1.dy)
     ..quadraticBezierTo(
         controlPoint1.dx, controlPoint1.dy, point2.dx, point2.dy)
     ..quadraticBezierTo(
         controlPoint2.dx, controlPoint2.dy, point3.dx, point3.dy)
     ..quadraticBezierTo(
         controlPoint3.dx, controlPoint3.dy, point4.dx, point4.dy)
     ..quadraticBezierTo(
         controlPoint4.dx, controlPoint4.dy, point5.dx, point5.dy)
     ..lineTo(point6.dx, point6.dy)
     ..lineTo(point7.dx, point7.dy)
     ..close();
   //完成绘制
   canvas.drawPath(wavePath, paint);
   canvas.restore();
 }
复制代码

按照第一步绘制波浪，方法同步骤去掉颜色和偏移用第一波

的值画出圆形的过程内容。这一步注意，绘制进度时必须旋转画布。具体绘制内容如下

 void drawCircleProgress(
     Canvas canvas,
     Offset center,
     double radius,
     Size size) {
   //画进度条圆框背景
   canvas.drawCircle(center, radius, circleProgressBGPaint);
   //保存画布状态
   canvas.save();
   //逆时针旋转画布90度
   canvas.rotate(degreeToRadian(-90));
   canvas.translate(
       -(size.height + size.width) / 2, -(size.height - size.width) / 2);
   //画进度条圆框进度
   canvas.drawArc(
       Rect.fromCircle(center: center, radius: radius),
       degreeToRadian(0),
       degreeToRadian(percent * 360),
       false,
       circleProgressPaint);
   //恢复画布状态
   canvas.restore();
 }
复制代码

绘制工作基本差不多完成了

让波浪在动

使用动画改变波浪的偏移值，重复动画。两个波浪的位移速度设置为不一致，让波浪显得更加协调

  void initState() {
    super.initState();
    waveAnimation = AnimationController(
      vsync: this,
      duration: widget.waveAnimationDuration,
    );
    waveAnimation.addListener(waveAnimationListener);
    lightWaveAnimation = AnimationController(
      vsync: this,
      duration: widget.lightWaveAnimationDuration,
    );
	//在lightWaveAnimationListener中获取波浪最新的偏移值，刷新状态
    lightWaveAnimation.addListener(lightWaveAnimationListener);
    waveAnimation.repeat();
    lightWaveAnimation.repeat();
  }
复制代码

波浪运动的效果做完之后，基本是一样的，但是有一个明显的问题，就是进度之后设置后，进度条中的波浪立即上升，看起来很不协调，因此，我们需要在进度变化时为进度条添加动画效果。

让波浪慢慢地上升和下降

  @override
  void initState() {
    super.initState();
    controller = AnimationController(
        vsync: this, duration: widget.progressAnimatedDuration);
    controller.addStatusListener((status) {
	  //当动画结束时重置动画
      if (status == AnimationStatus.completed) {
        progressAnimation.removeListener(handleProgressChange);
        controller.reset();
      }
    });
  }

  @override
  Widget build(BuildContext context) {
	//当进度发生改变时，开始动画
    if (currentValue != widget.value && !controller.isAnimating) {
      progressAnimation =
          controller.drive(IntTween(begin: currentValue, end: widget.value));
      progressAnimation.addListener(handleProgressChange);
      controller.forward();
    }
    ...
  }
复制代码

如果进度发生变化，我们使用动画将进度更改为给定的进度。这保证了当进度发生变化时，波浪不会立即上升。
